Buy 20ft DNV Refrigerated Containers Online Certified DNV 2.7-1 Standard
$ 12,000
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
Product details
Made possible by exploring innovative molded plywood techniques, Iskos-Berlin’s Soft Edge Chair blends strong curves with extreme lightness to create a three-dimensionality not usually possible with 2-D plywood.
Description
Description
Buy 20ft DNV Refrigerated Containers Online
Certified to the DNV 2.7-1 Standard
20ft Dnv 2.7-1 Standard Chiller and Freezer

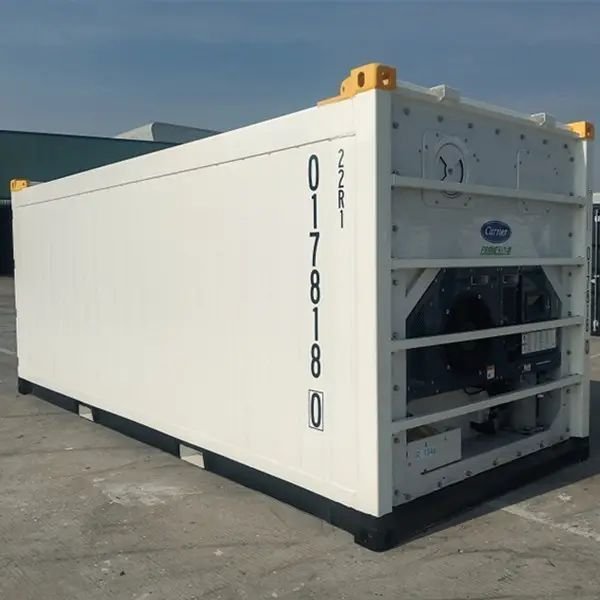

20FT Offshore Reefer Container with Carrier or Thermo King Refrigerated Units
A complete range of DNV offshore reefer containers for sale.

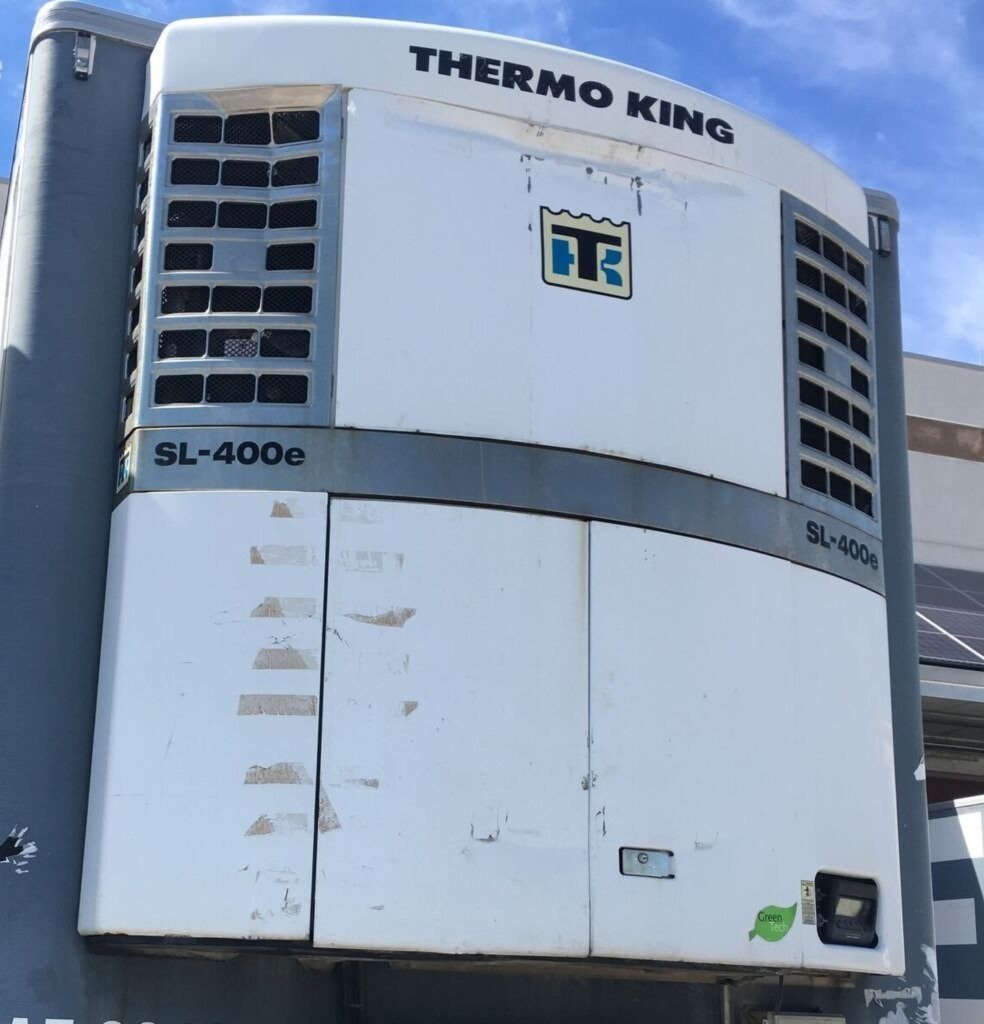

Offering the world’s most durable, energy-efficient integrated 20ft DNV reefer containers that combine the power of ICE STORM™ and THERMO KING™ refrigeration machines.
20ft DNV Offshore Reefer Container for Sale
DNV 2.7-1 Certified Offshore Reefer Container Available For Sale
Innovative technology at its best!
The 20ft Reefer is a container used to cool or freeze products, liquids and substances. This container is suitable for offshore purposes. Reefers offer a flexible solution for a shortage of refrigerated or frozen storage. This container can cool and freeze up to -25 degrees Celsius. On the contrary, it is also possible to transport and store goods up to +25 degrees Celsius. The 20ft Reefer is both for rent and for sale. All our offshore containers are certified in accordance with standards Certifications DNV 2.7-1, EN 12079, ISO and CSC.
20ft Reefer Offshore DNV 2.7-1 / EN12079
20ft offshore Reefer
20ft offshore reefers are used for refrigerated transport and storage of food and non-food products at the offshore location. The reefer containers can be stacked with the sling mounted.
DNV 2.7-1 Certificated 20 Ft Offshore Chiller Shipping Container
Container modification
Does the container not fully meet your wishes and requirements? Our engineers and welders are fully certified to be able to carry out adjustments to containers according to your wishes.
Key Features
Our offshore reefer containers provide energy efficient, portable and secure storage of goods requiring temperature control.
- DNV 2.7-1 certified and CSC plated
- Robust, reliable and proven design
- Units can be stacked with their slings still attached
- Modifications available
- Convenient, standard size cold storage
- Full operational support for leasing
- Twin Room Reefer can freeze and chill goods
- Built for the high ambient temperatures of the Middle East (+50°C)
20ft Offshore Reefer Dimensions
All specifications are indicative. Individual container’s dimensions may differ.
- Compliance with International Standards: This container meets the DNV 2.7-1 and EN12079 design standards, ensuring it is certified for safe and reliable operation in offshore environments.
- Spacious Capacity: With a capacity of 27 cbm, this reefer container provides ample space for storing perishable goods, making it ideal for transporting temperature-sensitive products.
- Durable Construction: Built with high-quality corten steel and Q345D materials, this container is designed to withstand harsh offshore conditions, ensuring a long lifespan and minimal maintenance.
- Customizable Power Options: Available in 380/460V, 3-phase, and 50/60Hz power configurations, this container can be easily integrated into various offshore systems, accommodating different user requirements.
- Optional Sling and Versatile Cooling: Equipped with a Daikin/Thermo King/Carrier cooling unit, this container offers adjustable temperature control, and the optional sling feature allows for easy transportation and placement in various offshore locations.
What is an Offshore Reefer Container?
Offshore reefer containers (also known as Offshore refrigerated containers) are used within the shipping industry to transport temperature-sensitive products that need refrigeration. Within the oil and gas industry, they are also popularly known as “skids.”
MGS offshore reefer containers have data monitoring systems, automated temperature and ventilation control, offering complete reliability in supplying perishable products to offshore locations.
20ft Offshore Reefer
20 FT HC DNV ISO OFFSHORE INTERMODAL SHIPPING STORAGE CONTAINER
Special feature: Offshore high cube container with slings, useable for the offshore industry
External / Internal
Length: 6.058 mm 20 ft / Length: 5.898 mm 19 ft 4“
Width: 2.438 mm 8 ft / Width: 2.350 mm 7 ft 7“
Height: 2.896 mm 9 ft 6“ / Height: 2.695 mm 8 ft 8“
Door opening
Width: 2.340 mm / 7 ft 7“
Height: 2.585 mm / 8 ft 5“
Weight table
Tare weight: 4.110 kg / 9060 lb
Max. load: 13.360 kg / 29453 lb
Total Test (2.5.R): 33.400 kg / 73634 lb
Volume: 33.3 m³
Offshore containers are containers that are used on the high seas and have to meet offshore requirements for high waves, as well as for salty seawater. This means that the containers must withstand severe weather conditions. For this reason, offshore containers are very sturdy and made of thick and strong steel, and are wind and waterproof.
Their lashing eyes are particularly robust, since the containers usually have to be loaded with the crane, and thus bare the entire net weight. There are also custom built options with electrical installation installed, such as a control center on drilling rigs, or to act as a living container. The containers are certified with DNV GL amongst other oil and gas industry and offshore classification. DNV 2.7-1, ISO 10855, EN12079, IMO MSC.
20ft offshore reefer container
1. Approval by Main Classification Society: BV / DNV / LR
2. Complies With DNV2.7-1:2006 and EN12079:2006 Standard
3. Surface Treatment: High Anti-Corrosion Painting or Hot Deep Galvanized
4. Design Temperature: – 20 ºC (Also provide – 40 ºC Design)Specification
|
Type
|
10ft offshore
|
20ft offshore
|
|
External(m)
|
2.991 x 2.438 x 2.591
|
6.058 x 2.438 x 2.591
|
|
Internal(m)
|
2.390 x 2.294x 2.165
|
5.454 x 2.294 x 2.165
|
|
Inside Cubic Capacity(m³)
|
11.86
|
27
|
|
Maximum Gross Weight(KG)
|
10000
|
20000
|
|
Tare Weight(KG)
|
3040
|
5070
|
|
Maximum Payload(KG)
|
6960
|
14930
|
|
Lifting Angle
|
45ºC
|
45ºC
|
|
Main Circuit
|
3 Phase, AC 440, 460V/380, 400, 415
|
|
